| ブランド名: | WONDERY |
| モデル番号: | WDL-HD-500 |
| Moq: | 1セット |
| 価格: | TO BE NEGOTIATED |
| 納期: | 35営業日 |
| 支払い条件: | L/C、D/P、T/T、ウェスタンユニオン |
WDL-HD-500 Electric Ladle Preheater - High Efficiency Aluminum Ladle Heating System for Industrial Foundry Applications
The WDL-HD-500 Electric Ladle Preheater is an advanced industrial heating solution designed specifically for preheating aluminum ladles in foundry and metallurgical operations. Developed by WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD., this electric-powered system ensures uniform and rapid heating, significantly improving operational efficiency and prolonging ladle lifespan. With a robust steel-welded structure, motorized lifting mechanism, and innovative 0-90° rotation function, it eliminates the limitations of traditional rail-based preheaters, offering flexible and precise positioning for ladle placement. Ideal for aluminum smelting, casting, and metal processing industries, the WDL-HD-500 enhances energy efficiency and temperature consistency while reducing manual intervention.
Key Technical Parameters
| Feature | Specification |
|---|---|
| Heating Temperature Range | 680°C - 760°C |
| Heating Rate | ≥300°C/hour |
| Internal Temperature Variation | ≤50°C |
| Lifting Height | ≥1350mm (customizable) |
| Heating Power | 15kW |
| Energy Type | Electric |
| Heating Elements | 3 × Radiation Heating Tubes (Φ145) |
| Control System | PID Precision Control |
| Power Supply | 3-Phase 380VAC/50Hz (3P+N+PE) |
Core Advantages
Efficient & Uniform Heating:PID-controlled radiation heating tubes deliver rapid temperature rise(≥300°C/hour)with minimal internal,ensuring ladle integrity and optimized molten aluminum handling.
Flexible Rotational Design:The 0-90° rotation mechanism allows easy ladle placement and replacement, improving workflow adaptability compared to fixed-track systems.
Durable Construction:Built with Q235A steel, high-density refractory castables, and ceramic fiber insulation for long-term thermal stability and low maintenance.
User-Friendly Operation:Includes automated lifting(0.75kW motor), plug-and-play electrica, and comprehensive safety features(Omron limit switches, solid-state relays).
Applications & Industries
This ladle preheater is widely used in aluminum smelting plants, foundries, metal recycling facilities, and automotive casting lines for preheating transfer ladles, tundishes, and similar containers. It supports continuous production cycles by reducing preheating downtime and energy waste.

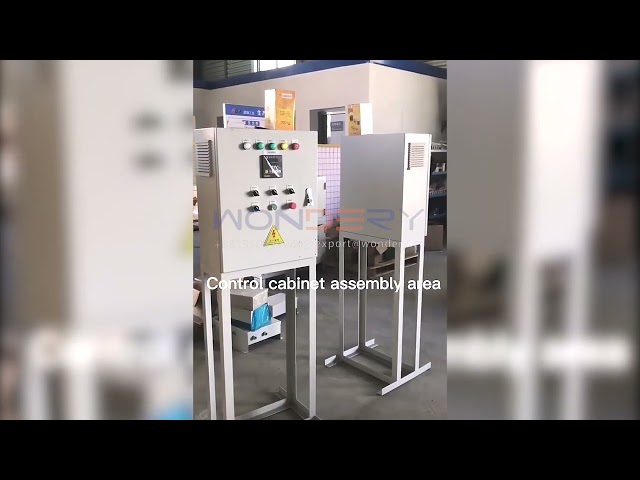

ビデオ
