| ブランド名: | WONDERY |
| モデル番号: | 2トン銅溶解炉 |
| Moq: | 1セット |
| 価格: | TO BE NEGOTIATED |
| 納期: | 60営業日 |
| 支払い条件: | L/C、D/P、T/T、ウェスタンユニオン |
Comprehensive Technical Overview of 2-Ton Copper Induction Melting Furnace Model WDL-DM-600
The furnace system features a 60KW medium-frequency IGBT power unit, a robust hydraulic tilting furnace body with a 2-ton capacity, advanced water-cooling cables, and a durable graphite crucible, delivering an efficient and reliable solution for large-scale copper smelting operations.
Core Technical Specifications of the 2-Ton Copper Melting Furnace
Engineered for industrial copper melting, the WDL-DM-600 ensures stable and precise thermal performance with advanced power and temperature controls. Below are the key operational parameters:
| Parameter | Specification |
|---|---|
| Melting Capacity | 2 Tons |
| Working Temperature | 1200℃ (Max 1400℃) |
| Input Voltage | 3×380 V, 50Hz |
| Output Power | 600KW |
| Output Frequency | 5–50 KHz |
| Tilting System | Hydraulic |
| Transformer Capacity | 750KVA |
| Start Success Rate | 98% |
Key System Components and Functional Highlights

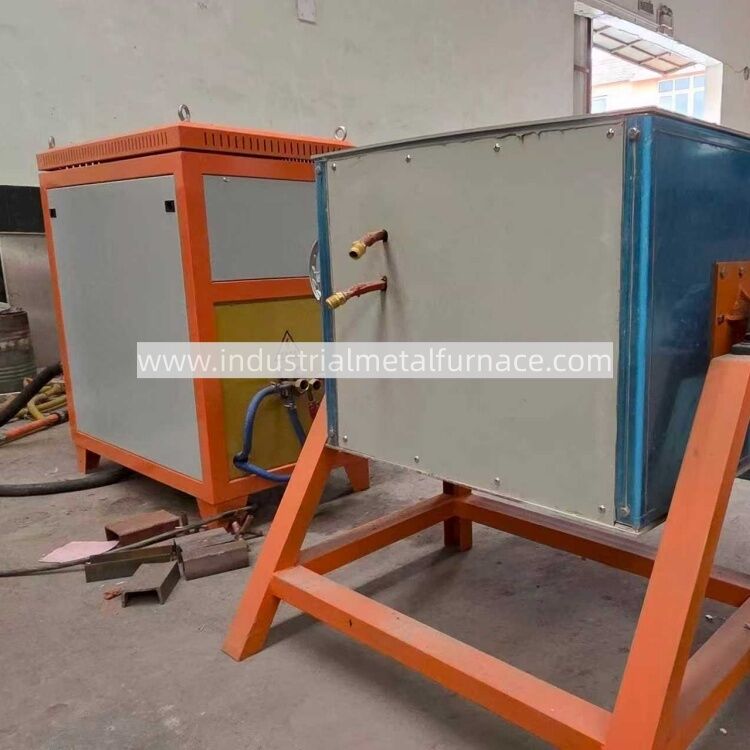

WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. supplies a fully integrated furnace solution tailored for high-efficiency copper melting. The induction power supply offers adjustable output from 60 to 600KW, enabling precise control over melting cycles. The furnace is equipped with a hydraulic tilting mechanism that ensures smooth and safe pouring, while the SIC graphite crucible provides excellent thermal resistance and durability. The inclusion of water-cooled cables and a steel-shell furnace body enhances operational safety, heat management, and equipment longevity.
Commercial Terms and Proposal Validity
The total EXW price for the Copper Induction Melting Furnace is USD 32,000.00, with delivery scheduled within 45 working days after the down payment is received. The payment structure requires a 40% advance and a 60% balance payment before shipment via T/T. This quotation remains valid until January 9, 2026, offering the client a clear and reliable procurement timeline.
This proposal underscores WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD.’s expertise in providing heavy-duty, precision-engineered melting systems for global metallurgical applications. With its high-capacity design, reliable hydraulic operation, and energy-efficient induction heating, the WDL-DM-600 is an ideal solution for foundries and copper processing plants seeking enhanced productivity and operational consistency.
